Elliptigo 11R

Detailed images

Product Rating

Rated 5 / 5 based on 2 customer reviews

Price:	$3,499.00	$0
SKU	Elliptigo 11R	$0

Options

Quantity

See Stores to Purchase »

Product Details Info

At Home Fitness can help you arrange In-Home, Professional Installation! Click here for more details.

Product Details

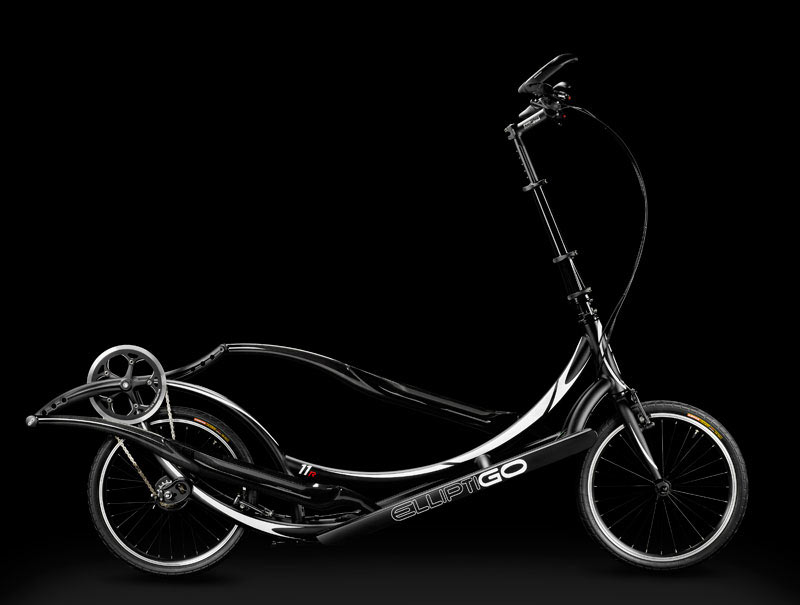

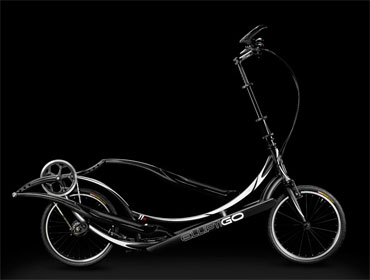

ElliptiGO 11R

It's the first ElliptiGO designed specifically for racing and ultra-endurance events. With carbon-fiber drive arms and a Shimano eleven-speed hub, the 11R is the lightest and most capable elliptical bike in the world. Compared to the ElliptiGO 8C, the 11R gives riders another low gear to take on the steepest hills and two more high gears to enable power transfer during high-speed descents.

Quick Comparison

ElliptiGO Product	ElliptiGO 3C	ElliptiGO 8C	ElliptiGO 11R
Gears/Speeds	3	8	11
Colors	Green, Black and Orange		Matte Black with White Striping
Transport/Storage	Removable Steering Extender Removable Front Wheel		Foldable Steering Extender Removable Front Wheel
Grips	Velo ergonomic grips	Ergon GC3 multi-position ergonomic grips with integral bar ends	Ergon GC3 multi-position ergonomic grips with integral bar ends
Weight	42 lbs (19.1 kg)	44 lbs (20 kg)	39.4 lbs (17.9 kg)
Climbing Ability	Mild hills (up to 5% grade)	Steep hills (up to 20-30% grade)	Steep hills (up to 20-30% grade)
Workout Resistance Selection	3 different levels of resistance 177% total resistance range 33% difference between levels	8 different levels of resistance 306% total resistance range 17% difference between levels	11 different levels of resistance 409% total resistance range 14 % difference between levels
Price	$1,799	$2,499	$3,499

System Specifications

ElliptiGO Product	ElliptiGO 3C	ElliptiGO 8C	ElliptiGO 11R
Wheelbase	54" (137 cm)
Total Length	75" (190.5 cm)
Weight	42 lbs (19.1 kg)	44 lbs (20 kg)	39.4 lbs (17.9 kg)
Operating Height	50-58" (127-147 cm)
Storing Height (with front wheel)	32" (81 cm) with steering extender removed		35" (89 cm)
Storing Height (no front wheel)	27" (70 cm) with steering extender removed		27" (70 cm)
Stride Length	16-25" (41-64 cm)
Crank Length	6.75 - 10.5" (171 - 267mm)
Gears/Speeds	3	8	11
Total Gear Range	177%	306%	409%
Avg Gear Step	33%	17%	11%
Gear Ratio Range	.75 - 1.33	.527 - 1.615	.527 - 2.153
Gear Inch Range	58 - 103	33 - 102	29 - 118
Gain Ratio Range	2.8 - 7.6	1.6 - 7.5	1.4 - 5.6

Components

ElliptiGO Product	ElliptiGO 3C	ElliptiGO 8C	ElliptiGO 11R
Frame	7005-T6 Aluminum
Fork	20" butted chro-moly with 1.5"" seerer tube
Propulsion System	Patented Elliptidrive technology
Track System	Integral with modular inserts (patent pending)
Drive arms	Aluminum with composite nylon foot platform		Multi-modulus carbon-fiber monococque
Cranks	Custom forged aluminum with Variable Stride Length (VSL) technology (patent pending)
Chainring	52-tooth, 130 BCD, 6061-T6 aluminum	53-tooth, 130 BCD, 6061-T6 aluminum	52-tooth, 130 BCD, 6061-T6 aluminum
Sprocket	13-tooth	16-tooth	18-tooth
Hub	Sturmey Archer R-SRF 3 3 speed hub internally geared hub	Shimano Alfine SG-S501 8-speed internally geared hub	Shimano Alfine SG-S700 11-speed internally geared hub
Bottom Bracket	Isis drive, sealed bearings
Steering Column	Removable and telescopically adjustable		Folding and telescopically adjustable with roto-lock safety technology
Steering Extender	butted chro-moly steel with anti rotation indexing		forged aluminum with anti-rotation indexing
Headset	1.5' threadless
Stem	Forged aluminum, 120mm x 7 deg.
Handlebar	Aluminum MTB riser bar, 50 mm rise, 670mm wide
Grips	Velo ergonomic grips	Ergon GC3 multi-position ergonomic grips with integral bar ends	Ergon GC3 multi-position ergonomic grips with integral bar ends
Shifter	Sturmey Archer S30 trigger shifter	Shimano Alfine SL-S500 trigger shifter	Shimano Alfine SL-S700 trigger shifter
Brake Levers	Avid FR5, two finger levers		Avid Speed Dial 7, two finger levers
Front and Rear Brakes	Linear pull rim brakes		Avid Single Digit 7 linear pull rim brakes
Front Wheel	20" aluminum aero profile rim, 28-spoke
Rear Wheel	20" aluminum aero profile rim, 32-spoke
Tires	Kenda Kwest, 20" x 1.5" 60TPI, 100-psi
Kickstand	Dual leg, forged aluminum kickstand

Performance

ElliptiGO Product	ElliptiGO 3C	ElliptiGO 8C	ElliptiGO 11R
Cruising Speed (flat terrain)	15 mph (24 kph)
Sprinting Speed (flat terrain)	23+ mph (37+ kph)
Recommended Riding Terrain	Flat terrain and mild hills	Flat and hilly terrain	Flat and hilly terrain
Climbing Ability	Can climb mild hills of up to 5% grade	Can climb steep hills up to 20-30% grade	Can climb steep hills up to 20-30% grade
Workout Resistance Selection	3 different levels of resistance 177% total resistance range 33% difference between levels	8 different levels of resistance 306% total resistance range 17% difference between levels	11 different levels of resistance 409% total resistance range 14% difference between levels
